Solar Panel 200W to 300W Module 4 Busbar 3 Bypass Diode Waterproof Solar PV Junction Box

Product Details:

Place of Origin:	CHINA
Brand Name:	Hochiry
Certification:	TUV
Model Number:	MCY102

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	3.5USD/PCS
Packaging Details:	Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 402631cm
Delivery Time:	3-5 days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Rated Voltage:	1000V/1500V	Connector Type:	Male & Female Solar Connector
Product Name:	Solar Connector	Test Voltage:	8kV(50Hz,1 Min)
Contact Resistance:	<5mΩ	Contact Material:	Copper,Tin Plated
Waterproof Protection:	IP68	Product Name:	Solar Junction Box

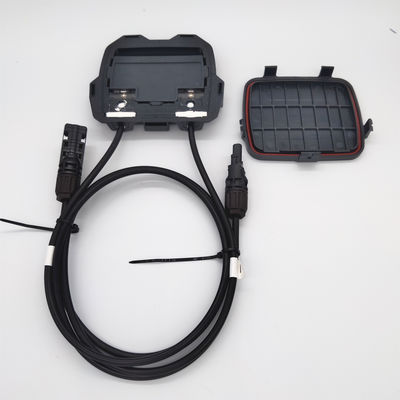

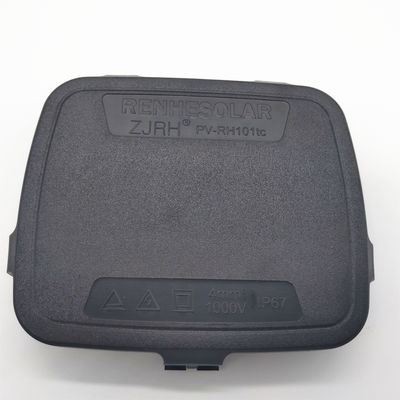

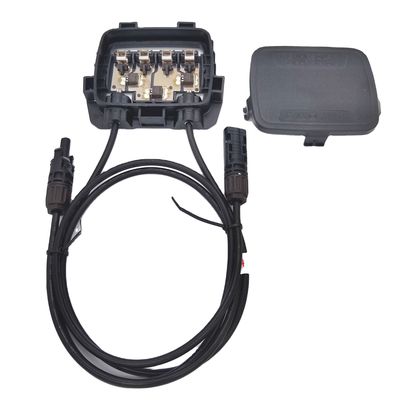

Main View

Solar Panel Junction Box Is Used For Solar PV Panel Connection, It has Diode, Cable, Junction Box Body, Connector. This J-Box Is 1 Diode, Suitable For 50W-100W Solar Module

Features

1. Certification, TUV, CE, RoHS 2. 25 Years Warranty 3. Back Body Stick To Panel Directly, Very Convenient To Install 4. Already Fit With Solar Connector and Wires Connection

Technical specifications

Specification

			Model Number

			RH101TC

			Certification Number

			TUV: R50343956

			Rated Voltage

			TUV 1500V

			Temperature Range

			-40C to +85C

			Safety Class

			Class II

			Protection Degree

			IP67

			Wire Size Range

			4mm2, 12AWG, 1Meter

			Flame Resistance

			V-0, 5VA

			Waterproof Range

			Seal

			Volume Of Silicon Gel

			4.6ml

			Width Of Copper Ribbons

			Up to 6mm for clamping, 8mm for soldering

			Connection Method

			Clamoing Or Soldering

			Insulation Material

			PPE+PS/PA

			Contact Material

			Copper Alloy

			Overall Size

			13x11x24cm
