HODAS Main in Portable EV Charger, DC / AC fast EV charging Sations
HODAS Main in Portable EV Charger, DC / AC fast EV charging Sations
 |
| Place of Origin: | CHINA |
| Brand Name: | Hochiry |
| Certification: | TUV |
| Model Number: | MCC201 |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | 3.5USD/PCS |
| Packaging Details: | Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 2000PCS/day |
| Rated Voltage: | 1000V/1500V | Connector Type: | Male & Female Solar Connector |
|---|---|---|---|

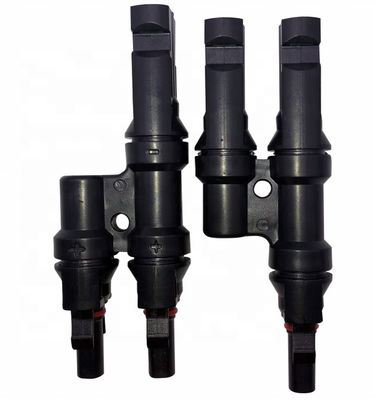

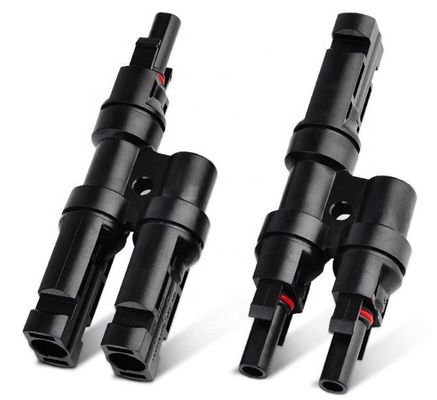

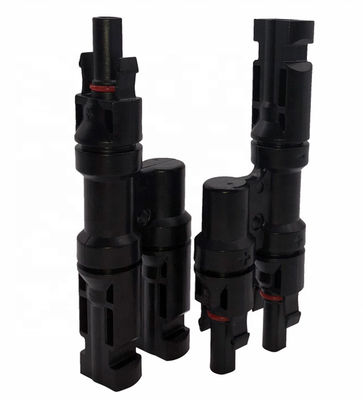

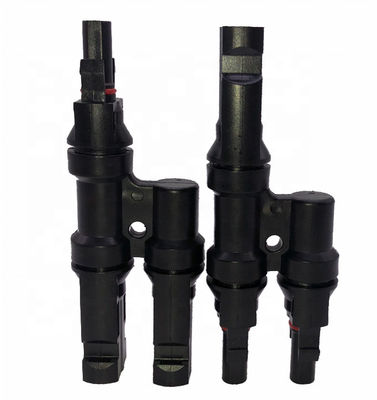

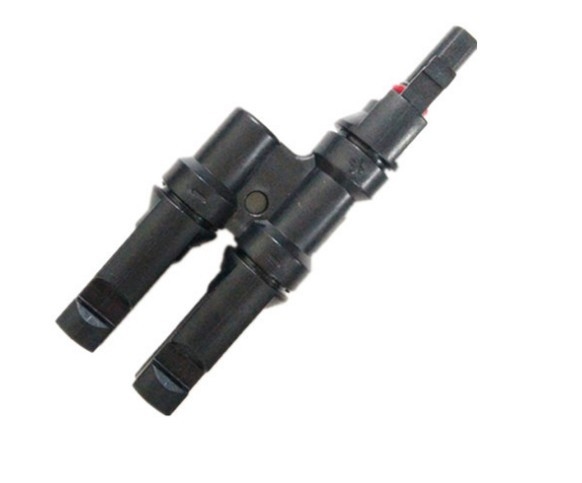

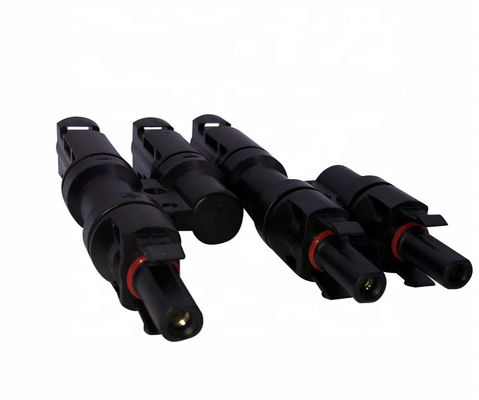

| Product Name: | Solar Connector | Test Voltage: | 8kV(50Hz,1 Min) |
| Contact Resistance: | <5mΩ | Pins: | 1pin |
| Contact Material: | Copper,Tin Plated | Waterproof Protection: | IP68 |
1. Photovoltaic branch for safe and simple parallel or series-parallel connection of PV-Module.
2. Due to highly robustness, UV resistance, the touch protection a high grade connection is guaranteed for many years.
3. Acc. To DIN V VED 012-3/12.6, UL1703 standard.
4.Removal will not cause any harm to plugs.
5.Load capability with big current and high voltage
6.Good ability of resistance and machine shocking
7.Lower contact resistance
Technical data
| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
| Rated current: | 30A(2.5mm2), | Insertion force: | Max. 50N |
| 50A(4mm2,6mm2) | |||
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+85℃ |
| Contact resistance: | <5mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: | CATIII/2 | Suitable cable cross section: | 2.5/4/6mm2, 14/12/10AWG |
