200W UL94 V0 Flame Class Waterproof PV Solar PV Junction Box

Product Details:

Place of Origin:	CHINA
Brand Name:	Hochiry
Certification:	TUV
Model Number:	MCY102

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	3.5USD/PCS
Packaging Details:	Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 402631cm
Delivery Time:	3-5 days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Rated Voltage:	1000V/1500V	Connector Type:	Male & Female Solar Connector
Test Voltage:	8kV(50Hz,1 Min)	Contact Resistance:	<5mΩ
Contact Material:	Copper,Tin Plated	Waterproof Protection:	IP68
Product Name:	Solar Junction Box

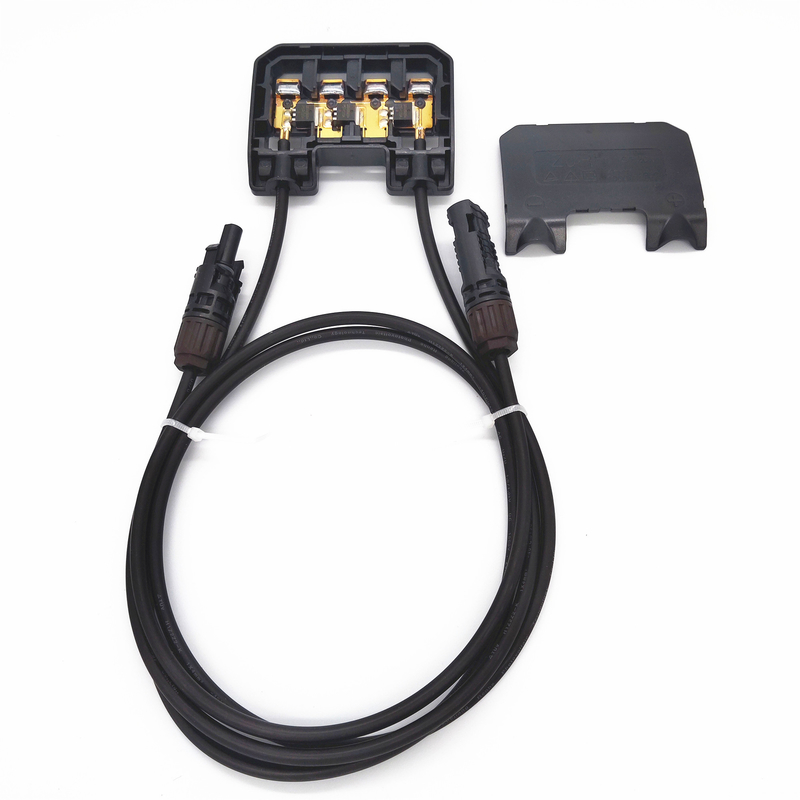

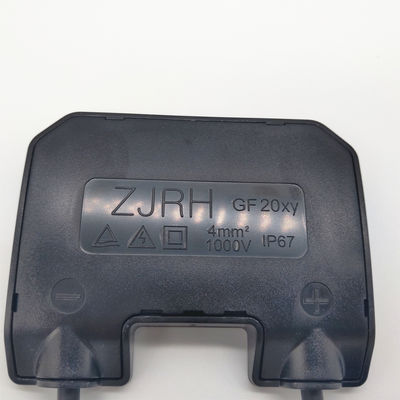

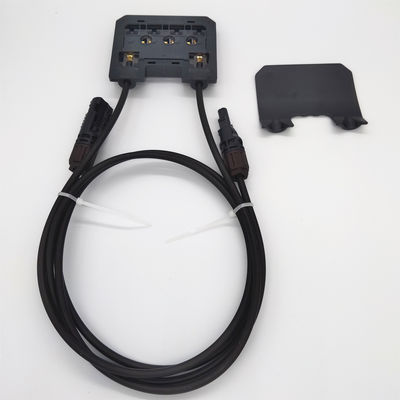

Main View

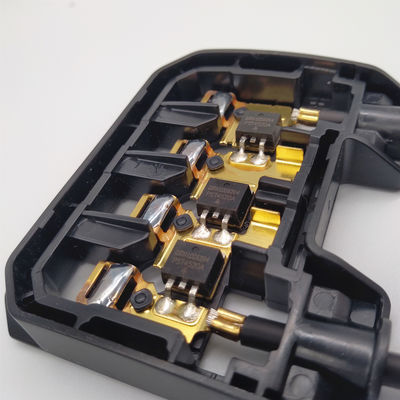

Solar Panel Junction Box Is Used For Solar PV Panel Connection, It has Diode, Cable, Junction Box Body, Connector. This J-Box Is 1 Diode, Suitable For 50W-100W Solar Module

Features

1. Certification, TUV, CE, RoHS 2. 25 Years Warranty 3. Back Body Stick To Panel Directly, Very Convenient To Install 4. Already Fit With Solar Connector and Wires Connection

Technical specifications


			Model Number

			GF20X

			Certification Number

			TUV: R50348429

			Rated Voltage

			TUV 1500V ,UL 1000V, CSA 1500V DC

			Temperature Range

			-40C to +85C

			Safety Class

			Class II

			Protection Degree

			IP67

			Wire Size Range

			4mm2, 12AWG, 1Meter

			Flame Resistance

			V-0, 5VA

			Waterproof Range

			Potting Sealant

			Volume Of Silicon Gel

			24 ml

			Width Of Copper Ribbons

			Up to 8mm for soldering

			Connection Method

			Soldering

			Insulation Material

			PPE+PS/PA

			Contact Material

			Copper Alloy

			Overall Size

			10x8x16cm

Contact Details

Shenzhen HODAS Technology Company

Contact Person: Mrs. Janny Chen

Tel: 86-18025320086
